Let us do the work for you. Each NINE ONE is tuned and delivered with the correct spring rate and damper settings, ready for you to hit the trail. Each fork also includes brake mount hardware for 180-203mm rotors standard, with 220 and 223mm available as an option.
Have questions? Our team has answers. Each NINE ONE comes with a unique Factory Settings Card, online support site, as well as a dedicated team of experts ready to assist you with your setup. Choose from Phone, Email, or Live Online chat M-F, 8-5pm Mountain Time.
Buy with confidence. Our expert team is dedicated to ensuring your riding experience is nothing short of extraordinary.
Everyone claims "Coil Like" feel.
WE CHOOSE THE REAL THING.
NINE ONE delivers true coil-spring performance. Consistent, Controlled, and Uncompromised.
Sub Chamber delivers uncompromised performance with instant, on-the-fly midstroke support adjustment.
Traditional spring systems force you to commit to one feel: plush and comfortable, or firm and supportive. Sub Chamber breaks that limitation. With a simple switch, it introduces a dedicated secondary chamber that increases mid-stroke support without affecting initial sensitivity.
The result is a front end that can stay high and composed through steep terrain and aggressive braking, while still offering the supple small-bump feel riders expect from premium suspension. Sub Chamber gives you the freedom to tune your ride in real time—no tools, no downtime, no compromise.
PASSIONATE ABOUT PRECISION
From raw material to final assembly, every step is touched by people who care deeply about how your suspension performs on the trail.
It's not mass-produced. It's made with intention.
Control at the end of travel, without giving up comfort everywhere else.
Our decoupled Hydraulic Bottom Out system adds a dedicated increase in compression damping for the last 70mm of travel, activating only when you need it most.
That means you can run lighter spring and damper settings for a smoother, more compliant ride, while still having the protection to take on deep compressions, hard landings, and unexpected impacts without ever slamming through the stroke.
CUSTOM TAILORED
The easiest way to upgrade your suspension without having to know anything about suspension.
Hand-built assembly, precise baseline tuning, and expert support whenever the need arises.

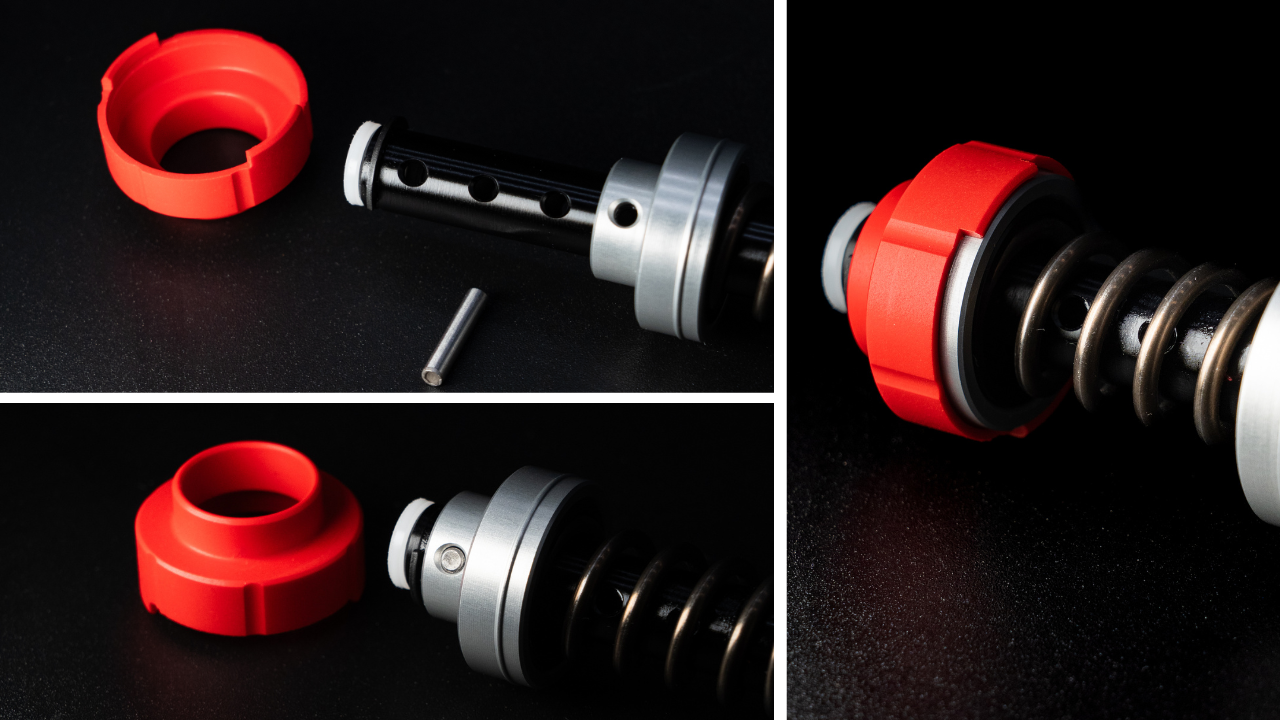

Internally adjustable between 140 and 170mm of travel in 10mm increments without additional parts or specialty tools.
| Travel | 140-170mm. Adjustable in 10mm increments |
| Wheel Size | 27.5" / 29" |
| Axle | 15x110mm. Standard and Torque Cap Hub End Cap Compatible |
| Offset | 27.5" - 37mm / 29" - 44mm |
| Axle to Crown | 551mm - 140mm Travel, 561mm - 150mm Travel, 571mm - 160mm Travel, 581mm - 170mm Travel |
| Steering Tube | 1.5" Tapered |
| Brake Compatability | 180 - 203 direct mount. 220/223mm with adapter |
| Weight | Approx. 2800gr |
